Understanding Go programs with go/parser

This blog post describes the same techniques used during episode 25 of justforfunc which you can watch right below.

Previously in justforfunc

In a previous post, we used the go/scanner package in Go’s standard library to identify which was the most common identifier in the standard library itself.

Spoiler alert: it was v.

In order to get a somehow more meaningful list, we limited the search to those identifiers that were three letters long or more. This gave us err and nil, which we’ve all seen before in the (in)famous if err != nil { expression.

Variables: package vs local

What if I wanted to know which is the most common name for local variables? What about functions or types? In order to answer this question scanners fall short because they lack context. We know what tokens we saw before, but in order to know whether a var a = 3 is declared at package, function, or even block levels we need more context.

A package has many declarations, some of those declarations may be of functions which in time could declare local variables, constants, or even more functions!

But how do we find that structure from a sequence of tokens? Well, every single programming language has a set of rules that inform us on how to build such a tree from a sequence of tokens. This looks something like:

VarDecl     = "var" ( VarSpec | "(" { VarSpec ";" } ")" ) .
VarSpec     = IdentifierList ( Type [ "=" ExpressionList ] | "=" ExpressionList ) .

The rules above tell us that a VarDecl (variable declaration) starts with a var token, followed by either a VarSpec (variable specification) or a list of them surrounded by parentheses and separated by semicolons.

Note: Those semicolons are actually added by the Go scanner, so you might not see them but the parser does.

If we start with a piece of Go code containing var a = 3 , using go/scanner we could obtain the following list of tokens.

[VAR], [IDENT "a"], [ASSIGN], [INT "3"], [SEMICOLON]

The rules above help us figure out this is a VarDecl with only one VarSpec. Then we’ll parse an IdentifierList with a single Identifier a, no Type, and an ExpressionList with an Expression which is an integer with value 3.

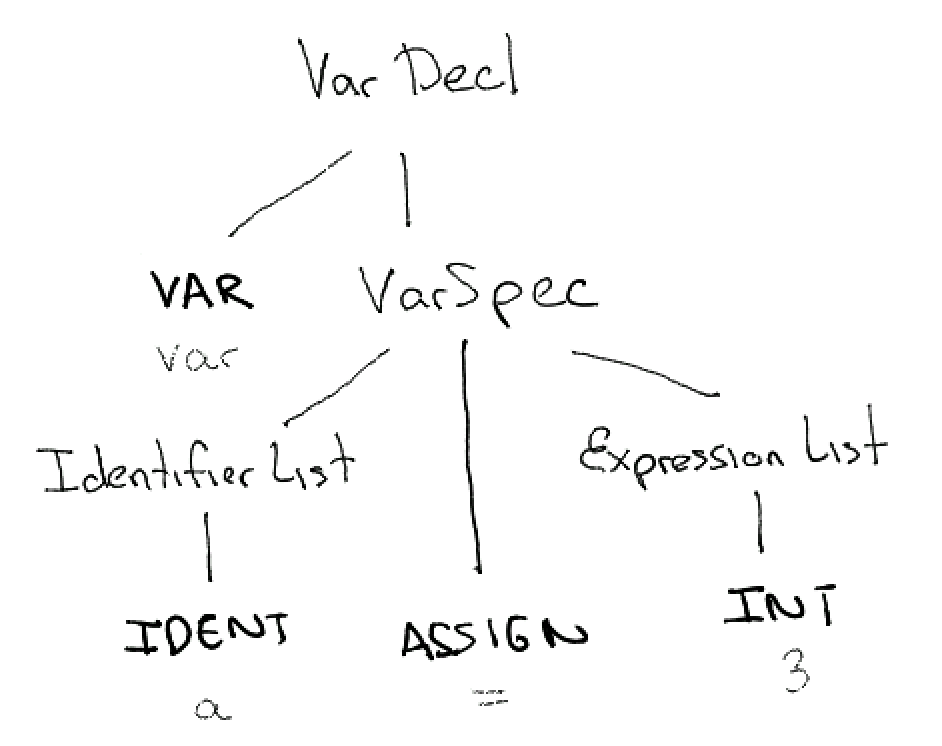

Or, as a tree, it would look like the image below.

AST from the previous tokens

The rules that allow us to go from a sequence of tokens to a tree structure form a language grammar, or syntax. The resulting tree is called an Abstract Syntax Tree, often simply AST.

Using go/scanner

Enough theory for now, let’s write some code! Let’s see how we can parse the expression var a = 3 and obtain an AST from it.

package main

import (
	"fmt"
	"go/parser"
	"go/token"
	"log"
)

func main() {
	fs := token.NewFileSet()
	f, err := parser.ParseFile(fs, "", "var a = 3", parser.AllErrors)
	if err != nil {
		log.Fatal(err)
	}
	fmt.Println(f)
}

This program compiles (yay!) but if you run you’ll see the following error:

1:1: expected 'package', found 'var' (and 1 more errors)

Oh, yeah. In order to parse a declaration we are calling ParseFile, which expects a full Go file therefore starting with package before any other code (expect for comments).

If you were parsing an expression, such as 3 + 5 or other pieces of code which you could see as a value you could pass as a parameter, then you have ParseExpr, but that function will not help with a function declaration.

Let’s simply add package main at the beginning of our code and see the AST we obtain.

package main

import (
	"fmt"
	"go/parser"
	"go/token"
	"log"
)

func main() {
	fs := token.NewFileSet()
	f, err := parser.ParseFile(fs, "", "package main; var a = 3", parser.AllErrors)
	if err != nil {
		log.Fatal(err)
	}
	fmt.Println(f)
}

And when we run it we get something a bit better … just a bit, though.

$ go run main.go
&{<nil> 1 main [0xc420054100] scope 0xc42000e210 {
        var a
}
 [] [] []}

Let’s print more detail by replacing the Println call by fmt.Printf("%#v", f) and try again.

go run main.go
&ast.File{Doc:(*ast.CommentGroup)(nil), Package:1, Name:(*ast.Ident)(0xc42000a060), Decls:[]ast.Decl{(*ast.GenDecl)(0xc420054100)}, Scope:(*ast.Scope)(0xc42000e210), Imports:[]*ast.ImportSpec(nil), Unresolved:[]*ast.Ident(nil), Comments:[]*ast.CommentGroup(nil)}

Ok, that’s better but I’m too lazy to read this. Let’s import github.com/davecgh/go-spew/spew and use it to print an easier to read value.

package main

import (
	"go/parser"
	"go/token"
	"log"

	"github.com/davecgh/go-spew/spew"
)

func main() {
	fs := token.NewFileSet()
	f, err := parser.ParseFile(fs, "", "package main; var a = 3", parser.AllErrors)
	if err != nil {
		log.Fatal(err)
	}
	spew.Dump(f)
}

Running this program shows us pretty much the same as before, but in a much more readable format.

$ go run main.go
(*ast.File)(0xc42009c000)({
 Doc: (*ast.CommentGroup)(<nil>),
 Package: (token.Pos) 1,
 Name: (*ast.Ident)(0xc42000a120)(main),
 Decls: ([]ast.Decl) (len=1 cap=1) {
  (*ast.GenDecl)(0xc420054100)({
   Doc: (*ast.CommentGroup)(<nil>),
   TokPos: (token.Pos) 15,
   Tok: (token.Token) var,
   Lparen: (token.Pos) 0,
   Specs: ([]ast.Spec) (len=1 cap=1) {
    (*ast.ValueSpec)(0xc4200802d0)({
     Doc: (*ast.CommentGroup)(<nil>),
     Names: ([]*ast.Ident) (len=1 cap=1) {
      (*ast.Ident)(0xc42000a140)(a)
     },
     Type: (ast.Expr) <nil>,
     Values: ([]ast.Expr) (len=1 cap=1) {
      (*ast.BasicLit)(0xc42000a160)({
       ValuePos: (token.Pos) 23,
       Kind: (token.Token) INT,
       Value: (string) (len=1) "3"
      })
     },
     Comment: (*ast.CommentGroup)(<nil>)
    })
   },
   Rparen: (token.Pos) 0
  })
 },
 Scope: (*ast.Scope)(0xc42000e2b0)(scope 0xc42000e2b0 {
        var a
}
),
 Imports: ([]*ast.ImportSpec) <nil>,
 Unresolved: ([]*ast.Ident) <nil>,
 Comments: ([]*ast.CommentGroup) <nil>
})

I recommend spending some time actually reading this tree and seeing how each piece matches with the original code. Feel free to ignore Scope, Obj, and Unresolved as we’ll talk about those later on.

Going from AST to code

It is sometime useful to print an AST into the corresponding source code rather than its tree form. To do so, we have the go/printer package which you can easily use as a way to see what information is stored in the AST.

package main

import (
	"go/parser"
	"go/printer"
	"go/token"
	"log"
	"os"
)

func main() {
	fs := token.NewFileSet()
	f, err := parser.ParseFile(fs, "", "package main; var a = 3", parser.AllErrors)
	if err != nil {
		log.Fatal(err)
	}
	printer.Fprint(os.Stdout, fs, f)
}

Executing this program prints the source code we parsed originally. It is now a good point to see how different values of the parsing mode affect what information is kept in the AST. Replace parser.AllErrors with parser.ImportsOnly or other possible values.

Navigating the AST

So far we have a tree that contains all of the information we want, but how do we extract the pieces of information we care about? This is where the go/ast package comes in handy (other than for declaring the ast.File that parser.ParseFile returns!).

Let’s use ast.Walk. This function receives two arguments. The second one is an ast.Node which is an interface satified by all the nodes in the AST. The first argument is an ast.Visitor which is also obviously an interface.

This interface has a single method.

type Visitor interface {
	Visit(node Node) (w Visitor)
}

Ok, so we already have a node, since the ast.File returned by parser.ParseFile satisfies the interface, but we still need to create an ast.Visitor.

Let’s simply write one that prints the type of the node and returns itself.

package main

import (
	"fmt"
	"go/ast"
	"go/parser"
	"go/token"
	"log"
)

func main() {
	fs := token.NewFileSet()
	f, err := parser.ParseFile(fs, "", "package main; var a = 3", parser.AllErrors)
	if err != nil {
		log.Fatal(err)
	}

	var v visitor
	ast.Walk(v, f)
}

type visitor struct{}

func (v visitor) Visit(n ast.Node) ast.Visitor {
	fmt.Printf("%T\n", n)
	return v
}

Running this program gives us a sequence of nodes, but we’ve lost the tree structure. Also, what are all of those nil nodes? Well, we should read the documentation of ast.Walk! Turns out the Visitor we return is used to visit each one of the children of the current node, and we end up by calling the Visitor with a nil node as a way to communicate there’s no more nodes to visited.

Using that knowledge we can now print something that looks more like a tree.

type visitor int

func (v visitor) Visit(n ast.Node) ast.Visitor {
	if n == nil {
		return nil
	}
	fmt.Printf("%s%T\n", strings.Repeat("\t", int(v)), n)
	return v + 1
}

The rest of the code in our program remains unchanged, and executing it prints this output:

*ast.File
        *ast.Ident
        *ast.GenDecl
                *ast.ValueSpec
                        *ast.Ident
                        *ast.BasicLit

What’s the most common name per kind of identifier?

Ok, so now that we understand how to parse code and visit its nodes, we are ready to extract the information we want: what are the most most common names for variables declared at package level vs those declared locally inside of a function.

We wills tart with a piece of code very similar to what we had in the previous episode, where we used go/scanner over a list of files passed as command line arguments.

package main

import (
	"fmt"
	"go/ast"
	"go/parser"
	"go/token"
	"log"
	"os"
	"strings"
)

func main() {
	if len(os.Args) < 2 {
		fmt.Fprintf(os.Stderr, "usage:\n\t%s [files]\n", os.Args[0])
		os.Exit(1)
	}

	fs := token.NewFileSet()
	var v visitor

	for _, arg := range os.Args[1:] {
		f, err := parser.ParseFile(fs, arg, nil, parser.AllErrors)
		if err != nil {
			log.Printf("could not parse %s: %v", arg, err)
			continue
		}
		ast.Walk(v, f)
	}
}

type visitor int

func (v visitor) Visit(n ast.Node) ast.Visitor {
	if n == nil {
		return nil
	}
	fmt.Printf("%s%T\n", strings.Repeat("\t", int(v)), n)
	return v + 1
}

Running this program will print the AST of each one of the files given as command line argument. You can try it on its own by running:

$ go build -o parser main.go  && parser main.go
# output removed for brevity

Let’s now change our visitor to keep track of how many times each identifier is used for each kind of variable declaration.

First let’s start by tracking all short variable declarations, since we know they are always local declarations.

type visitor struct {
	locals map[string]int
}

func (v visitor) Visit(n ast.Node) ast.Visitor {
	if n == nil {
		return nil
	}
	switch d := n.(type) {
	case *ast.AssignStmt:
		for _, name := range d.Lhs {
			if ident, ok := name.(*ast.Ident); ok {
				if ident.Name == "_" {
					continue
				}
				if ident.Obj != nil && ident.Obj.Pos() == ident.Pos() {
					v.locals[ident.Name]++
				}
			}
		}
	}
	return v
}

For each assignment statement we’re checking whether the identifier name is _, which should be ignored, and whether this is the declaration point of the identifier. In order to do so we use the Obj field which keeps track of all the objects declared in a context.

If the Obj field is nil we know that the variable was declared in a different file, therefore it’s not a local variable declaration and we can ignore it.

If we run this program on the whole standard library we’ll see that the most common identifiers are:

Interestingly enough, v doesn’t appear at all! Are we missing any other ways of declaring local variables?

Counting parameters and range variables too

We’re missing a couple node types to have a more completely analysis of local variables. These are:

function parameters, receivers, and named returned values.
range statements.

Since the code to count a local variable identifier will be repeated all over let’s define a method on visitor instead.

func (v visitor) local(n ast.Node) {
	ident, ok := n.(*ast.Ident)
	if !ok {
		return
	}
	if ident.Name == "_" || ident.Name == "" {
		return
	}
	if ident.Obj != nil && ident.Obj.Pos() == ident.Pos() {
		v.locals[ident.Name]++
	}
}

For parameters and returned values we will have a list of identifiers. We also have the same for method receivers, even though they always have only one element. Let’s define an extra method for lists of identifiers.

func (v visitor) localList(fs []*ast.Field) {
	for _, f := range fs {
		for _, name := range f.Names {
			v.local(name)
		}
	}
}

Then we can use that method for all the node types that might declare local variables.

	case *ast.AssignStmt:
		if d.Tok != token.DEFINE {
			return v
		}
		for _, name := range d.Lhs {
			v.local(name)
		}
	case *ast.RangeStmt:
		v.local(d.Key)
		v.local(d.Value)
	case *ast.FuncDecl:
		v.localList(d.Recv.List)
		v.localList(d.Type.Params.List)
		if d.Type.Results != nil {
			v.localList(d.Type.Results.List)
		}

Great, let’s run this and see which one is the most common local variable name for now!

$ ./parser ~/go/src/**/*.go
most common local variable names
 12264 err
  9395 t
  9163 x
  7442 i
  6127 c

Handling var declarations

Let’s move into handling the var declarations. These are more interesting because they could be local or global, and the only way to know is to check whether they’re at the ast.File level.

To do so we’re going to create a new visitor per file which will keep track of the declarations that are global, so we can count the identifiers correctly.

To do so we’ll add a pkgDecls field of type map[*ast.GenDecl]bool in our visitor, and it will be initialized by a newVisitor function. We’ll also add a globals field tracking how many times an identifier has been declared.

type visitor struct {
	pkgDecls map[*ast.GenDecl]bool
	globals  map[string]int
	locals   map[string]int
}

func newVisitor(f *ast.File) visitor {
	decls := make(map[*ast.GenDecl]bool)
	for _, decl := range f.Decls {
		if d, ok := decl.(*ast.GenDecl); ok {
			decls[d] = true
		}
	}

	return visitor{
		decls,
		make(map[string]int),
		make(map[string]int),
	}
}

Our main program will need to create a new visitor per file and keep track of the total results.

	locals, globals := make(map[string]int), make(map[string]int)

	for _, arg := range os.Args[1:] {
		f, err := parser.ParseFile(fs, arg, nil, parser.AllErrors)
		if err != nil {
			log.Printf("could not parse %s: %v", arg, err)
			continue
		}

		v := newVisitor(f)
		ast.Walk(v, f)
		for k, v := range v.locals {
			locals[k] += v
		}
		for k, v := range v.globals {
			globals[k] += v
		}
	}

Ok, we just have one more piece of the puzzle to complete. We need to track the *ast.GenDecl nodes and find all the variable declarations in them.

	case *ast.GenDecl:
		if d.Tok != token.VAR {
			return v
		}
		for _, spec := range d.Specs {
			if value, ok := spec.(*ast.ValueSpec); ok {
				for _, name := range value.Names {
					if name.Name == "_" {
						continue
					}
					if v.pkgDecls[d] {
						v.globals[name.Name]++
					} else {
						v.locals[name.Name]++
					}
				}
			}
		}

For each declaration we will only count those that start with a token.VAR, therefore ignoring constants, types, and other kind of identifiers. THen, for each value declared, we’ll check whether it’s a global or local declaration, and count them accordingly and ignoring _.

The whole program is available here.

Executing the program will give us this result:

$ ./parser ~/go/src/**/*.go
most common local variable names
 12565 err
  9876 x
  9464 t
  7554 i
  6226 b
most common global variable names
    29 errors
    28 signals
    23 failed
    15 tests
    12 debug

So there you go, the most common local variable name is err, while the most common package variable name is errors.

Which one is the most common constant name? How would you find it?

Thanks

If you enjoyed this episode make sure you share it and subscribe to justforfunc! Also, consider sponsoring the series on patreon.
